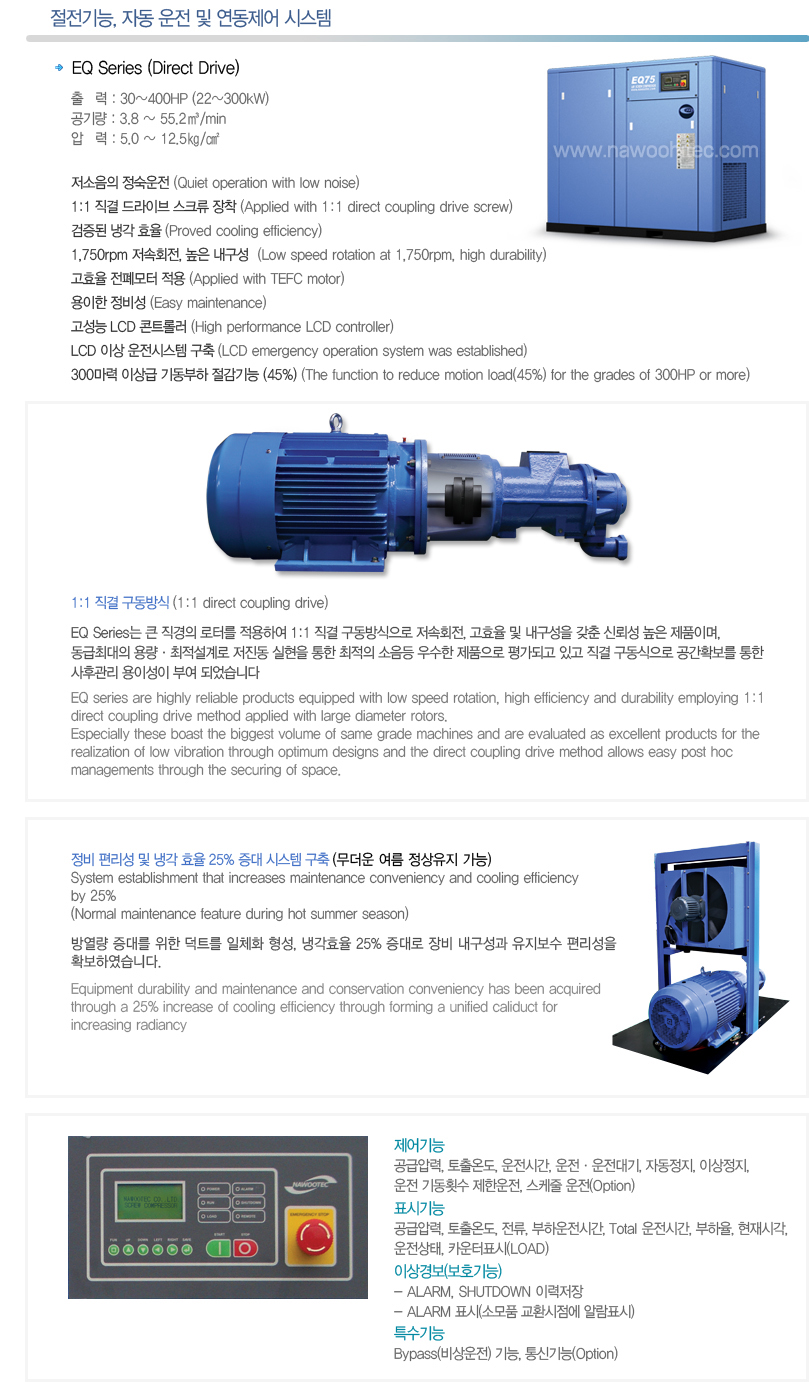

 > 제품소개 > 급유식 스크류 컴프레서 - EQ Series |
|
 |
|
| |
 |
| MODEL |
EQ22 |
EQ37 |
EQ55 |
EQ75 |
EQ90 |
EQ110Ⅱ |
EQ150Ⅱ |
EQ225Ⅱ |
EQ300Ⅱ |
Comp
ressor |
Capacity
(㎥/min) |
7kg / ㎠ |
3.8 |
6.5 |
10.0 |
13.8 |
16 |
20.2 |
27.6 |
40.4 |
55.2 |
| 9kg / ㎠ |
3.6 |
6.0 |
9.3 |
12.4 |
13.8 |
17.7 |
23.1 |
35.4 |
46.2 |
| 12kg / ㎠ |
|
5.3 |
7.3 |
10.3 |
|
14.5 |
19.4 |
29.0 |
38.8 |
| Cooling Method |
Air Cooled |
Air Cooled / Water Cooled |
| Discharge Air Temp. |
Ambient Temperature + 13℃ |
| Driving Method |
Coupling Direct |
| Min.Working Pressure |
4.5kg / ㎠ |
| Discharge Connection (A) |
25 |
32 |
50 |
50 |
50 |
65 |
65 |
80 |
80 |
| Motor |
Motor Power (kW) |
22 |
37 |
55 |
75 |
75 |
110 |
150 |
220 |
300 |
| Frequency (Hz) |
50 / 60 |
| Voltage |
3PH , 220 / 380 / 440 |
| Starting System |
Star-Delta |
Star-Delta / Reactor |
| Oil Capacity (liter) |
14 |
18 |
40 |
40 |
45 |
75 |
75 |
150 |
150 |
| Oil Carry Over |
3ppm(weight / weight) |
| Noise Level : dB(A) |
68 |
68 |
70 |
70 |
75 |
77 |
77 |
79 |
79 |
| Net Weight(appox.) (kg) |
610 |
1,015 |
1,800 |
1,880 |
1,930 |
3,300 |
3,600 |
6,530 |
7,080 |
| Dimension (mm) |
Length (L) |
1,280 |
1,800 |
2,100 |
2,100 |
2,350 |
2,700 |
2,700 |
3,500 |
3,500 |
| Width (W) |
825 |
950 |
1,200 |
1,200 |
1,200 |
1,532 |
1,532 |
2,300 |
2,300 |
| Height (H) |
1,200 |
1,600 |
1,800 |
1,800 |
1,800 |
1,960 |
1,960 |
2,300 |
2,300 |
|
|
|
|
|
|
