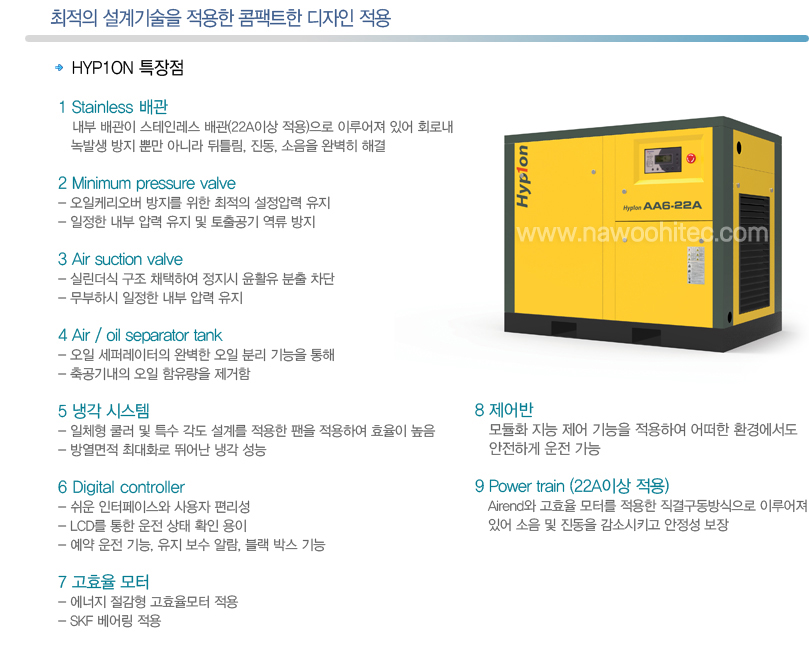

> 제품소개 > 급유식 스크류 컴프레서 - HYP1ON Series

MODEL HYPION
22
HYPION
37
HYPION
45
HYPION
55
HYPION
75
HYPION
90
Comp
ressor
Capacity 8BAR 3.7 6.8 8 9.8 13.1 16.8
Cooling Method Air Cooled
Discharge Air Temp. Ambient Temperature +15℃
Driving Method Coupling Direct
Min.Working Pressure 4.5kg / ㎠
Discharge Connection(A) 32 40 50 50 50 50
Motor Motor Power (kW) 22 37 45 55 75 90
Frequency (Hz) 50 / 60
Voltage 220 / 380 / 440
Starting System Star-Delta
Oil Capacity (liter) 9 10 22.5 50 50 70
Oil Carry Over 3ppm(weight / weight)
Noise level : dB(A)
Net Weight(appox.) (kg) 800 900 1,020 1,600 1,900 2,400
Dimension (mm) Length (L) 1,400 1,450 1,550 1,750 1,850 2,150
Width (W) 800 900 1,160 1,200 1,300 1,460
Height (H) 1,000 1,200 1,400 1,400 1,400 1,620

MODEL HYPION 7.5 HYPION 11 HYPION 15
Comp
ressor
Capacity 8BAR 1.06 1.55 2.13
10BAR 0.86 1.35 1.94
13BAR 0.67 1.13 1.44
Cooling Method Air Cooled
Discharge Air Temp. Ambient Temperature +15℃
Driving Method Belt
Min.Working Pressure 4.5kg / ㎠
Discharge Connection(A) 25 25 25
Motor Motor Power (kW) 7.5 11 15
Frequency (Hz) 50 / 60
Voltage 220 / 380 / 440
Starting System Star-Delta
Oil Capacity (liter) 9 10 12
Oil Carry Over 3ppm(weight / weight)
Noise level : dB(A) 68 69 70
Net Weight(appox.) (kg) 423 479 562
Dimension (mm) Length (L) 1,930 1,930 1,930
Width (W) 790 825 880
Height (H) 1,610 1,640 1,710
